Stop Escaped JSON in Middleware (Docker) — Two Reliable Fixes

[iammahendrarao]

Learn how to stop escaped JSON in Middleware logs when using Docker. Covers both Fluentd driver and Fluent Bit bridge methods — with configs, troubleshooting, and verification steps.

Two reliable fixes with copy‑paste configs
Tested end‑to‑end with Docker Compose, Middleware Host Agent, and Fluent Bit / fluentd.

Audience: Devs/SREs shipping app logs to Middleware from Docker
Problem: Logs show up as a giant escaped JSON string (full of \" backslashes), so fields don’t parse/index.
Goal: Get clean JSON in the Middleware UI with minimal moving parts.

---

TL;DR

• Escaping happens because Docker’s default json-file driver wraps your JSON line inside another JSON envelope.
• Fix A (simplest): Change the app’s logging driver to fluentd and point it at the Middleware agent’s Fluent Forward port. No file tailing, no escapes.
• Fix B (bridge): Keep json-file but run Fluent Bit to tail *-json.log , unescape the payload, and forward it to the agent.

Pick A when you can change the app’s logging driver. Pick B if policy/tooling requires json-file .

---

Why logs look escaped

Docker’s default logging (json-file ) stores each stdout line like:

{"log":"{\"message\":\"...\"}", "time":"..."}

When the agent reads that file, your original JSON is inside the log string → hence all the backslashes. Middleware can’t parse fields inside a quoted string.

---

Pre‑flight checklist (both fixes)

• A Middleware API key for the Host Agent.
• Docker/Compose installed.
• Confirm the agent’s Fluent Forward port 8006 is available on the host (or choose another host port to map, e.g., 8007).
• If you previously filtered by File Path in the Middleware UI, clear it when using the fluentd driver (there’s no *-json.log path in that flow).

---

Fix A — Point Docker directly to the agent (fluentd driver)

Fastest and most robust. The app writes logs straight to the agent via the Fluent Forward protocol.

Compose (port‑mapped agent)

services:
  app:
    image: python:3.12-alpine
    container_name: demo-json-app
    working_dir: /app
    volumes:
      - ./app.py:/app/app.py:ro
    command: ["python", "-u", "/app/app.py"]
    logging:
      driver: fluentd
      options:
        fluentd-address: 127.0.0.1:8006 # if 8006 is busy, map 8007:8006 below and use 127.0.0.1:8007
        tag: "docker.{{.Name}}"
        fluentd-retry-wait: "1s"
        fluentd-max-retries: "3"

  middleware-agent:
    image: ghcr.io/middleware-labs/mw-host-agent:master
    container_name: middleware-agent
    environment:
      - MW_API_KEY=<YOUR_API_KEY>
      - MW_TARGET=https://<your-org>.middleware.io:443
      - MW_HOST_TAGS=env:demo,project:json-test
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /var/lib/docker/containers:/var/lib/docker/containers:ro
    ports:
      - "8006:8006" # change to "8007:8006" if 8006 is occupied

Why 127.0.0.1 ? Docker resolves the logging endpoint from the host perspective, so localhost + a mapped port is the most predictable.

Verify

• docker inspect demo-json-app --format '{{json .HostConfig.LogConfig}}' should show Type:"fluentd" and your fluentd-address .

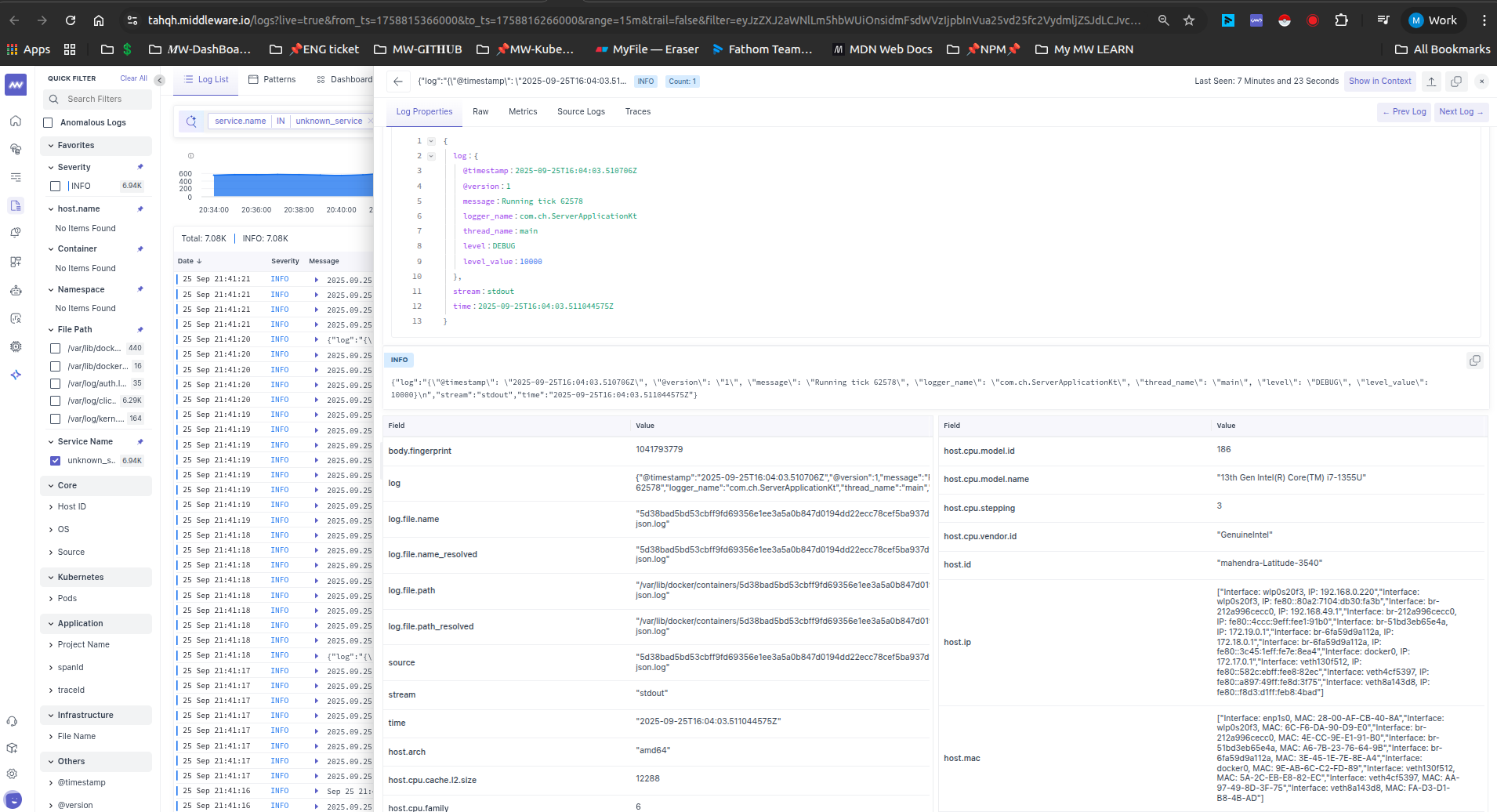

• In Middleware → Logs , entries are clean (no \" ) , and fields are visible under Parsed / Indexed Attributes .

Alternative: run the agent with network_mode: host and keep fluentd-address: 127.0.0.1:8006 . Port mapping is usually safer to avoid clashes.

---

Fix B — Keep json-file , add a tiny Fluent Bit bridge

Use this when you can’t change the app’s logging driver. Fluent Bit tails Docker files, unescapes the payload, and forwards to the agent.

Compose

services:
  app:
    image: python:3.12-alpine
    container_name: demo-json-app
    working_dir: /app
  volumes:
    - ./app.py:/app.py:ro
  command: ["python", "-u", "/app.py"] # default json-file logging stays enabled

middleware-agent:
  image: ghcr.io/middleware-labs/mw-host-agent:master
  container_name: middleware-agent
  environment:
    - MW_API_KEY=<YOUR_API_KEY>
    - MW_TARGET=https://<your-org>.middleware.io:443
    - MW_HOST_TAGS=env:demo,project:json-test
  volumes:
    - /var/run/docker.sock:/var/run/docker.sock
  logging:
    driver: "none" # optional: keep the agent’s own stdout out of your logs

fluent-bit:
  image: cr.fluentbit.io/fluent/fluent-bit:2.2.0
  container_name: fluent-bit
  depends_on: [middleware-agent]
  volumes:
    - ./fluent-bit.conf:/fluent-bit/etc/fluent-bit.conf:ro
    - ./parsers.conf:/fluent-bit/etc/parsers.conf:ro
    - /var/lib/docker/containers:/var/lib/docker/containers:ro
    - ./state:/fluent-bit/state
    - /var/run/docker.sock:/var/run/docker.sock

fluent-bit.conf

[SERVICE]
    Parsers_File   /fluent-bit/etc/parsers.conf
    Log_Level      info
    Storage.path   /fluent-bit/state

[INPUT]
    Name                   tail
    Path                   /var/lib/docker/containers/*/*-json.log
    Tag                    docker.*
    Parser                 docker_json_unescape
    DB                     /fluent-bit/state/docker.db
    Refresh_Interval       5
    Skip_Long_Lines        On
    Read_from_Head         Off
    Path_Key               filename

# Optional: enrich with Docker metadata (enable only if your image includes the plugin)
# [FILTER]
#     Name           docker
#     Match          docker.*
#     Unix_Path      /var/run/docker.sock
#     Labels         On
#     Env            On


# Keep noise out: drop the agent container’s own logs
[FILTER]
    Name          grep
    Match         docker.*
    Exclude       filename    /var/lib/docker/containers/.*/middleware-agent-.*-json.log

# Nice-to-have: a stable service name for grouping in the UI
[FILTER]
    Name     modify
    Match    docker.*
    Add      service.name demo-json-app


[OUTPUT]
    Name          forward
    Host          middleware-agent
    Port          8006
    Match         docker.*

parsers.conf

[PARSER]
    Name docker_json_unescape
    Format json
    Time_Key time
    Time_Format %Y-%m-%dT%H:%M:%S.%LZ
    # If the "log" field contains a JSON string, decode it into objects
    Decode_Field_As json log

Verify

• docker logs fluent-bit should show flush chunk ... succeeded messages once the agent is up.

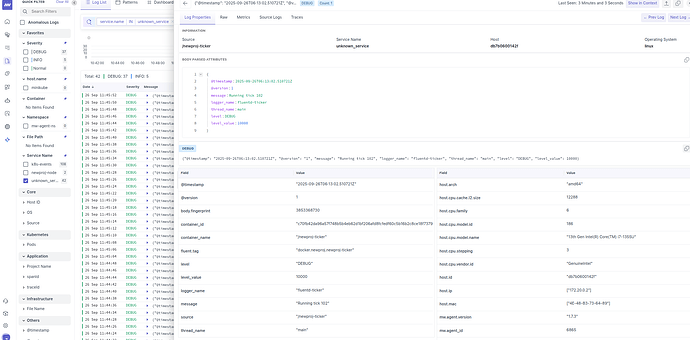

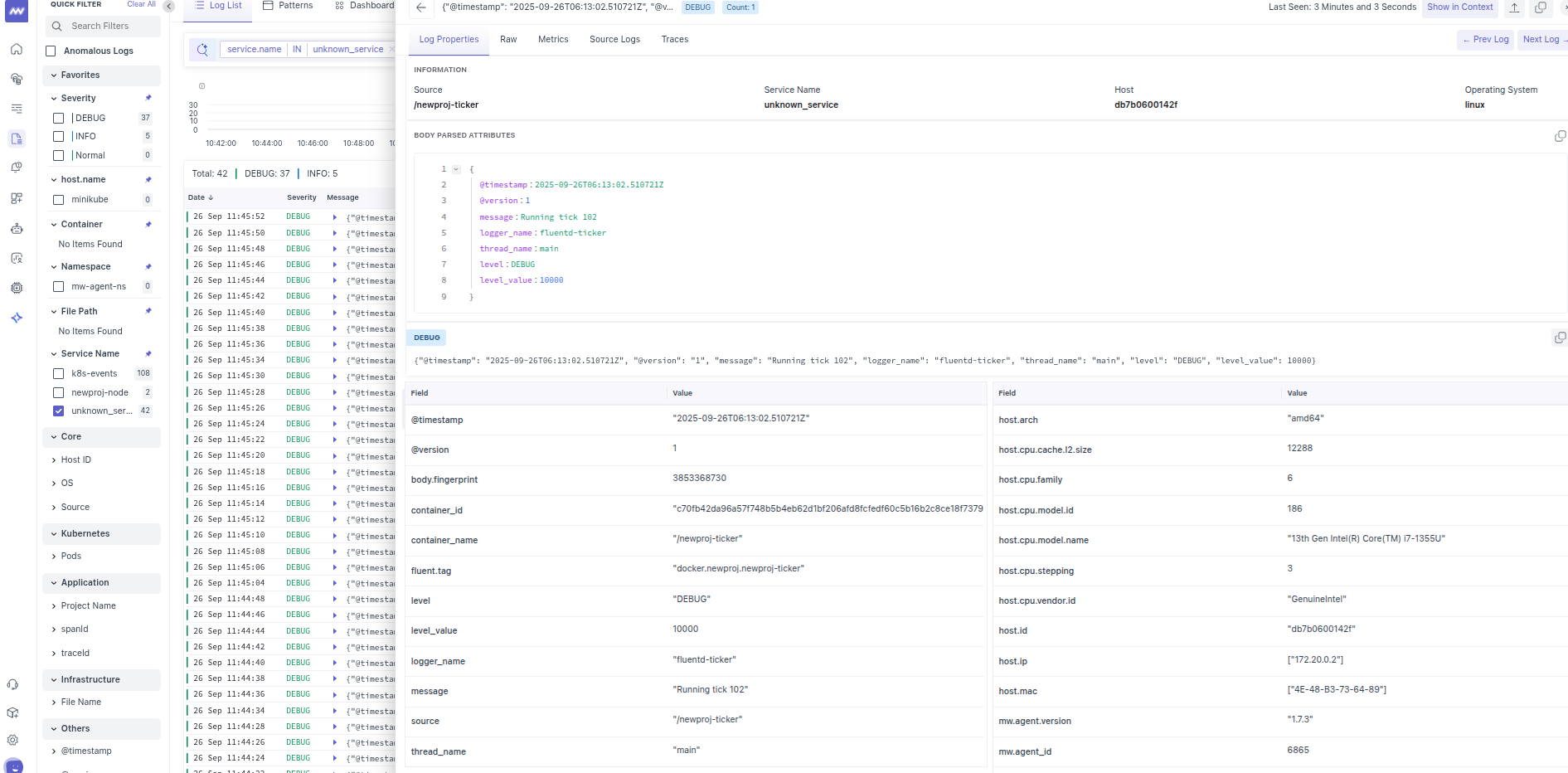

• In Middleware → Logs , fields are parsed; no more escaped payloads.

If you see: section 'docker' tried to instance a plugin name that don't exists — your image lacks the docker filter plugin. Keep that filter commented out ; the bridge still works without it.

---

Minimal demo app (for reproducible screenshots)

# app.py
import json, time, datetime


i = 0
while True:
    i += 1
    rec = {
        "@timestamp": datetime.datetime.utcnow().isoformat() + "Z",
        "@version": "1",
        "message": f"Running tick {i}",
        "logger_name": "com.ch.ServerApplicationKt",
        "thread_name": "main",
        "level": "DEBUG",
        "level_value": 10000,
    }
    print(json.dumps(rec), flush=True)
    time.sleep(2)

---

Troubleshooting quick hits

• Port busy (8006): Map another host port (e.g., 8007:8006 ) and point fluentd-address (Fix A) or the Fluent Bit output (Fix B) accordingly.
• No logs arriving: confirm the agent is listening: sudo ss -ltnp | grep 8006 (or your mapped port).
• UI still shows escaped strings: verify the app is truly on fluentd (Fix A), or that Decode_Field_As json log is active (Fix B). Also clear any File Path filter in the UI when using Fix A.
• Too much noise: either set logging: { driver: "none" } on the agent (Fix A) or keep the grep Exclude in Fluent Bit (Fix B).

---

Which fix should I choose?

• Fix A (fluentd driver): fewer moving parts, most direct path, best default.
• Fix B (Fluent Bit): use when compliance/tooling dictates json-file or when you want to enrich and route logs at the file layer.

---

Final note

Rotate any test API keys used during screenshots before sharing publicly. Add org‑specific hostnames and tags as needed.

---

Credits

Thanks to the middleware community and middleware.io devs who surfaced and validated the fluentd-driver approach.
